360°-Rundumsicht-Überwachungssystem für LKW
This AVM system features a customized around view monitoring system for truck, it's 2022 new design, which makes your driving and parking safer and more easily.
.jpg)
.jpg)
.png)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.png?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Funktionen
A. AHD 720P high resolution images output
B. Customization designed and perfectly fits for all kinds of trucks, no impacts on vehicle appearance after installation.
C. Waterproof level:IP68
D. Auto calibration

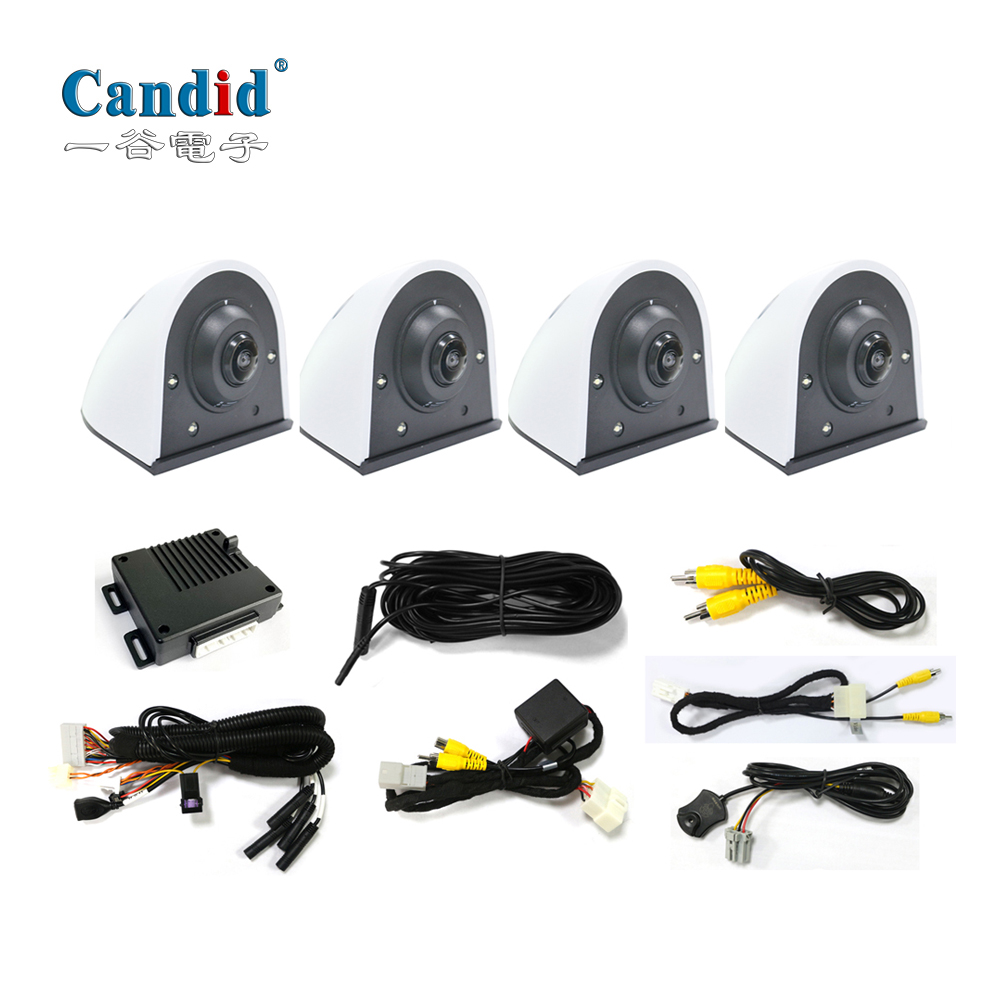

E. With four wide angle cameras, show panoramic view around the vehicle without any blind spot
F. OE quality standard, extra long-term warranty of 3 years
B. Customization designed and perfectly fits for all kinds of trucks, no impacts on vehicle appearance after installation.
C. Waterproof level:IP68
D. Auto calibration
E. With four wide angle cameras, show panoramic view around the vehicle without any blind spot
F. OE quality standard, extra long-term warranty of 3 years
Leistungsbeschreibung
| Sensor | AHD |
| TV-Modus | PAL/NTSC |
| Bildsensor | 1/2,9 Zoll |
| Betriebsspannungsbereich | DC12V (7,5-16V) |
| Arbeitsstrom | 63,5 mA±10 mA |
| Leistungsaufnahme | 0,75 W DC12 V |
| Video-Ausgang | 1,0±0,2 Vpp 75 Ω |
| NÜTZLICHE PIXEL | 1280*720 |
| Minimale lllomination | 0,5 Lux |
| Verschlusszeit | Auto |
| Betrieb Luftfeuchtigkeit | 85 RH% |
| Betriebstemperatur | -20°C~ +60°C |
| Lagertemperatur | TBD |
Anträge
