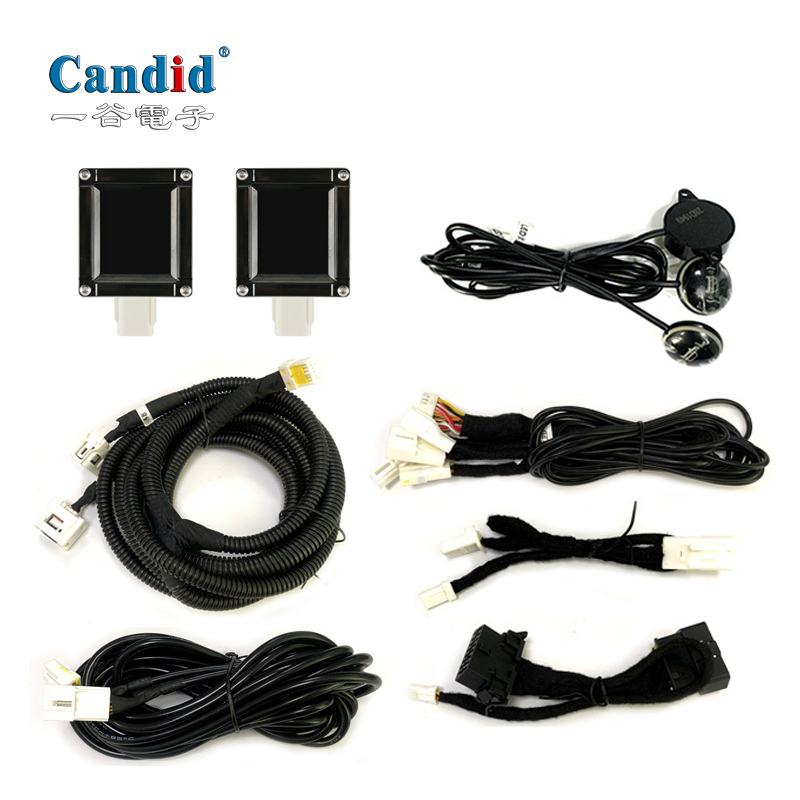

Mikrowellen-Radar-Totwinkel-Erkennungssysteme BSD-24G
Features:
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
Funktionen

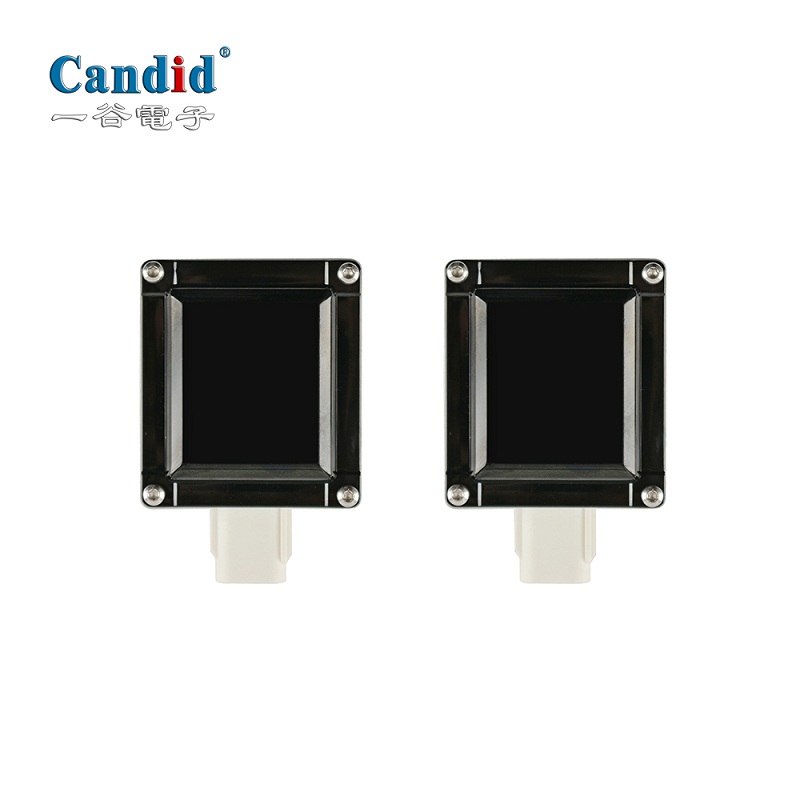

24G Hz, high sensitive microwave radar sensor
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance

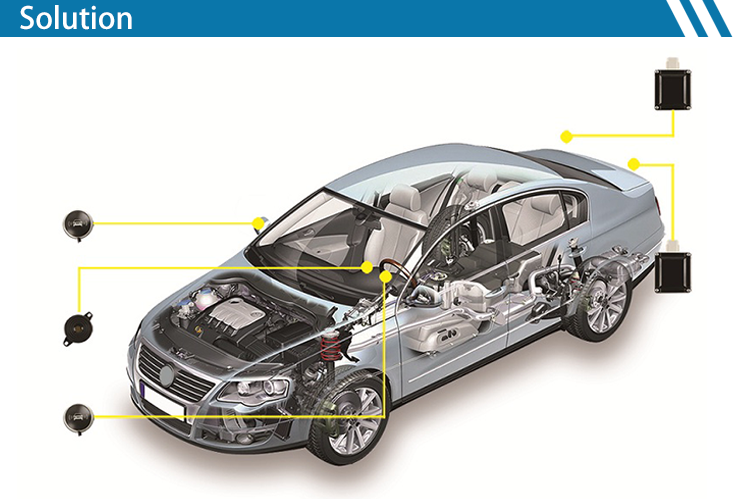

Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
Vehicle door open warning function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
Leistungsbeschreibung
Betriebsfrequenz | 24 GHz |
Seitlicher Erfassungsbereich | 3 Meter |
Rückseitiger Erfassungsbereich | 15 Meter |
Horizontalwinkel | 120º |
Zielrate aktualisieren | 50Hz |
Genauigkeit des Erfassungsbereichs | 0,36 Mio. |
Fehlerbereich des Erfassungswinkels | 1º |
Fehlerbereich bei der Erkennung der relativen Geschwindigkeit | ±0,25 m/s |
Relative Geschwindigkeit des Alarms | Wenn die Relativgeschwindigkeit zwischen Zielfahrzeug und Fahrzeug weniger als 140 km/h beträgt, funktioniert das System. |
Erkannte Zielmindestgeschwindigkeit | Die Relativgeschwindigkeit des Ziels beträgt mehr als 2,5 km/h. |
Antwortzeit | 50ms |
Antennen-Tunnel | 1Tx 1R |
Sendeausgang der Antenne | 12dBm |
IP-Schutzart | Schutzart IP67 |
Betriebsspannung | 9 V bis 16 V (typisch 12 V) |
Leistungsaufnahme | ≤500mA @12VDC |
Betriebstemperatur | -40°C–+85°C |
Lagertemperatur | -40°C–+95°C |
Anträge
