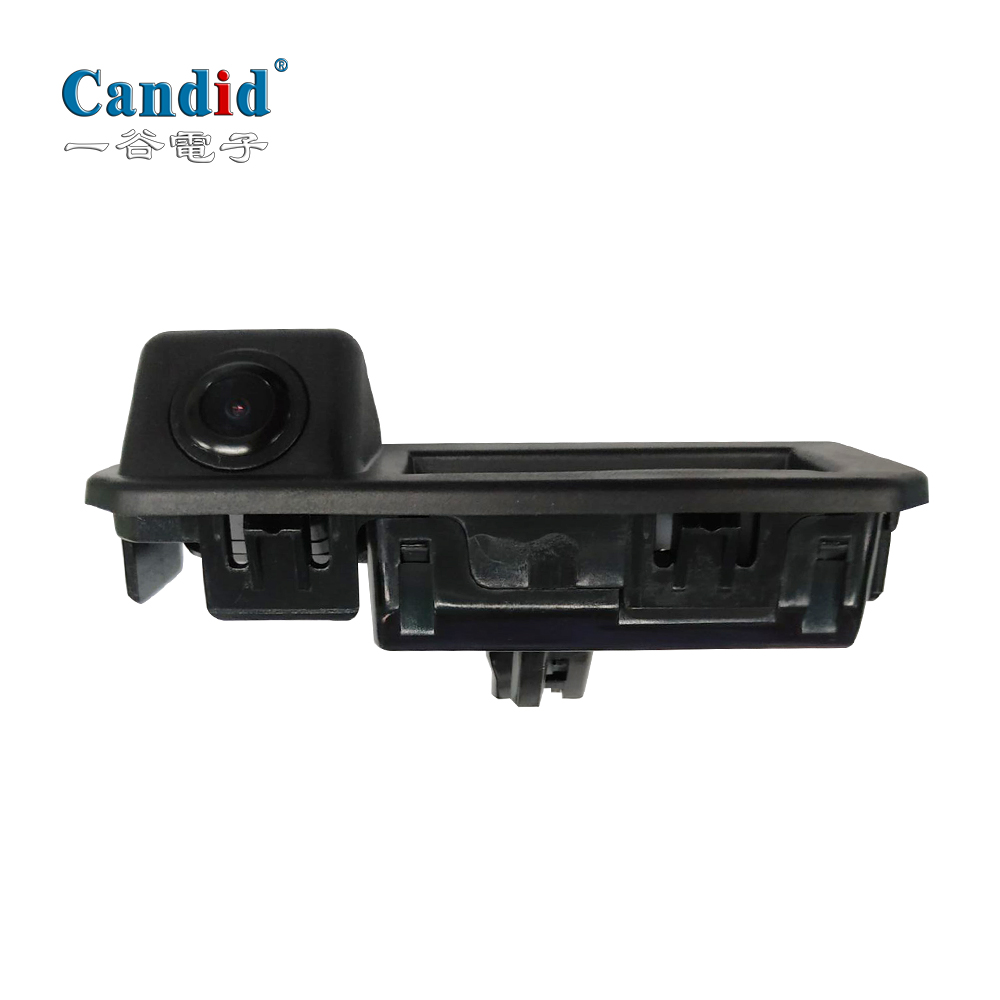

Auto kundenspezifische Heckklappengriff-Kamera für Audi CA-959
Features:
This rear view customized tailgate handle camera is for Audi 17 A5, it's with OE quality standard & 1080P high definition image output & IP69K waterproof level & night vision & parking line function, it original fitting by replacing the Tailgate Handle that can matching very well with the original car
This rear view customized tailgate handle camera is for Audi 17 A5, it's with OE quality standard & 1080P high definition image output & IP69K waterproof level & night vision & parking line function, it original fitting by replacing the Tailgate Handle that can matching very well with the original car
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Funktionen
Tailgate handle reverse camera for Audi 17 A5
6 layors of glass lens materials
1/4" SONY CCD sensor
waterproof level: IP69K
ultra low light performance
wide viewing angle: 120 degrees
customized design for Audi 17 A5, easy installation and no impact on vehicle's appearance
Mirror/Non-mirror image optional
PAL/NTSC optional
6 layors of glass lens materials
1/4" SONY CCD sensor
waterproof level: IP69K
ultra low light performance
wide viewing angle: 120 degrees
customized design for Audi 17 A5, easy installation and no impact on vehicle's appearance
Mirror/Non-mirror image optional
PAL/NTSC optional
Leistungsbeschreibung
| Bildsensor | SONY CCD |
| TV-Modus | PAL/NTSC |
| Bildsensor | 1/4" SONY CCD |
| Betriebsspannungsbereich | DC12V (10-16V) |
| Arbeitsstrom | 63mA±10mA |
| Leistungsaufnahme | 0.72W@ DC12 V |
| Video-Ausgang | 1,0±0,2 Vpp 75 Ω |
| Bildpunkte | |
| NÜTZLICHE PIXEL | 768*494 |
| Minimale Beleuchtungsstärke | 0,3 Lux |
| Breite Dynamik | 80 dB |
| Signal-Rausch-Verhältnis | 52 dB |
| Auflösungsverhältnis | 3700000 Pixel |
| Gamma-Wert | 0.45 |
| Objektiv-Winkel | 120 Grad |
| Verschlusszeit | 1/60 ~ 1/100.000 (Sekunde) |
| IRIS-Methode | Auto |
| Wasserdichte Stufe | Schutzart IP69 |
| Weißabgleich | Auto |
| AGC | Auto |
| Kompensation der Hintergrundbeleuchtung | Auto |
| Betrieb Luftfeuchtigkeit | 85 RH% |
| Betriebstemperatur | -20°C~ +70°C |
| Lagertemperatur | -40 °C ~ + 85 °C |
