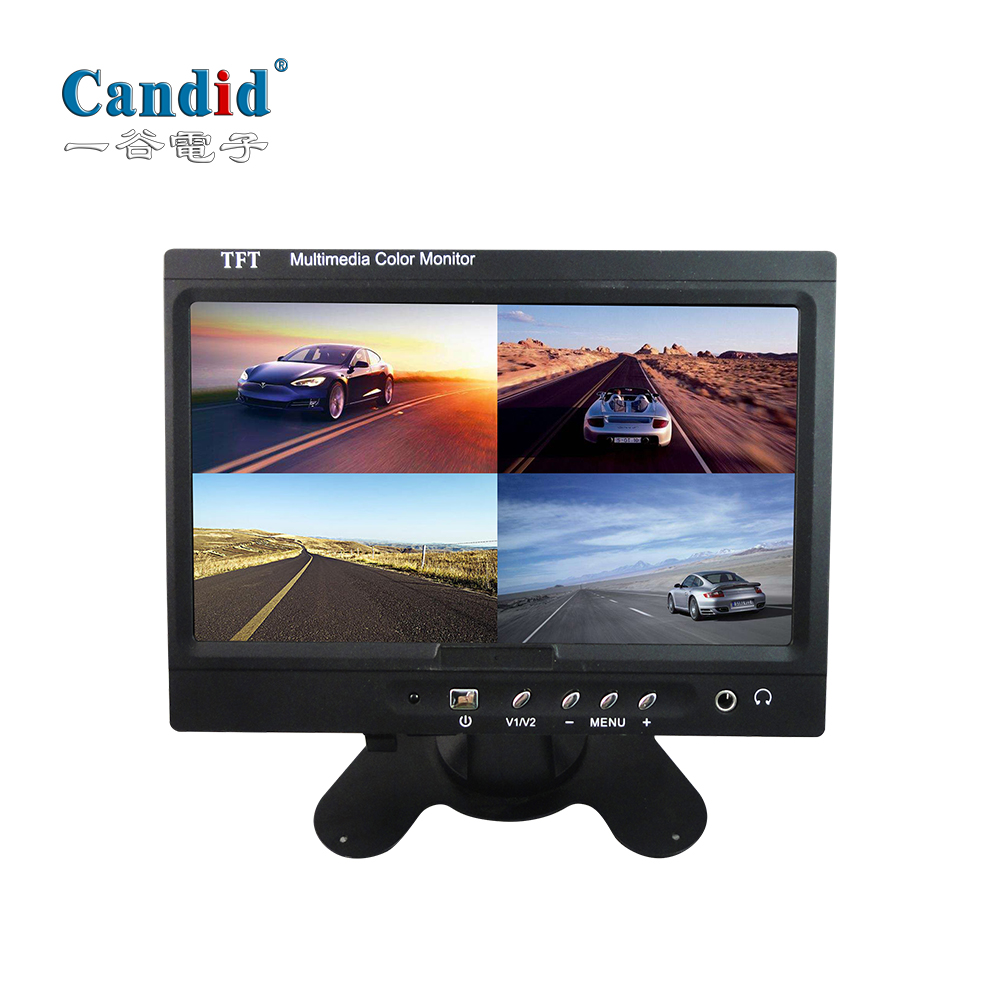

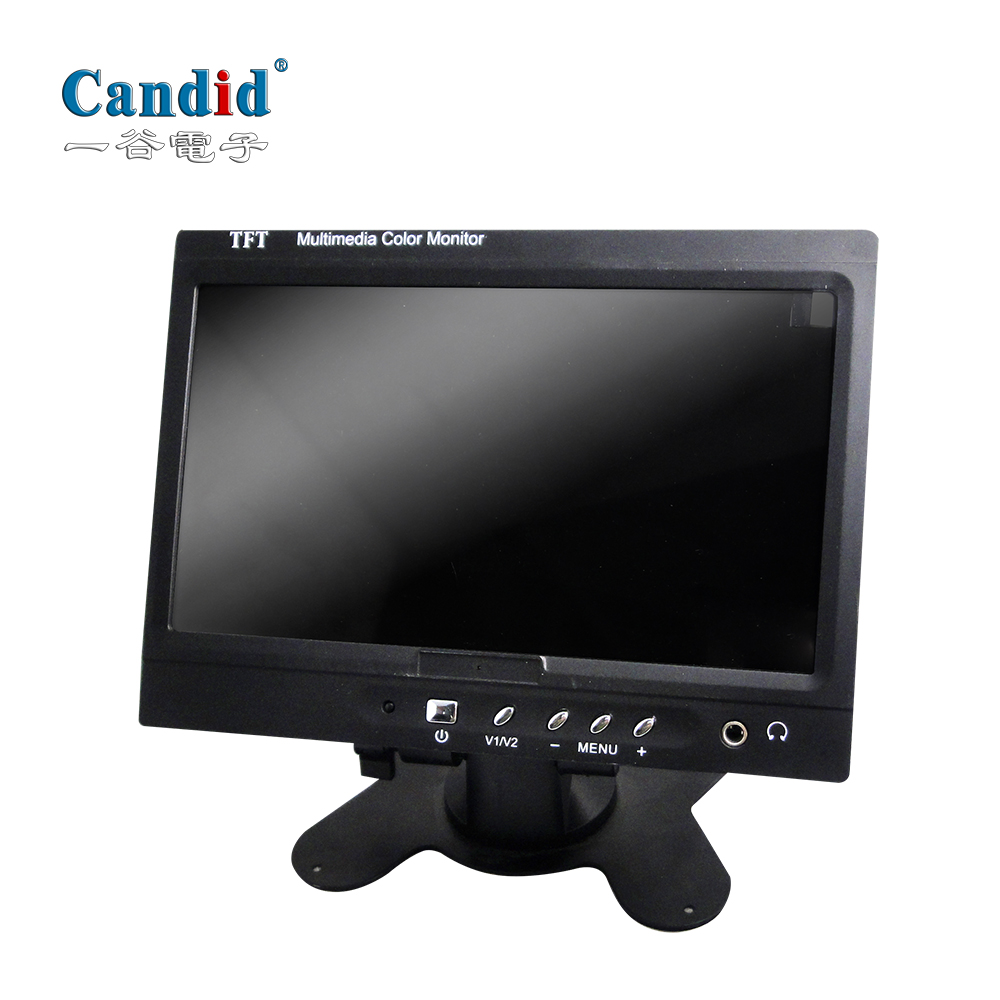

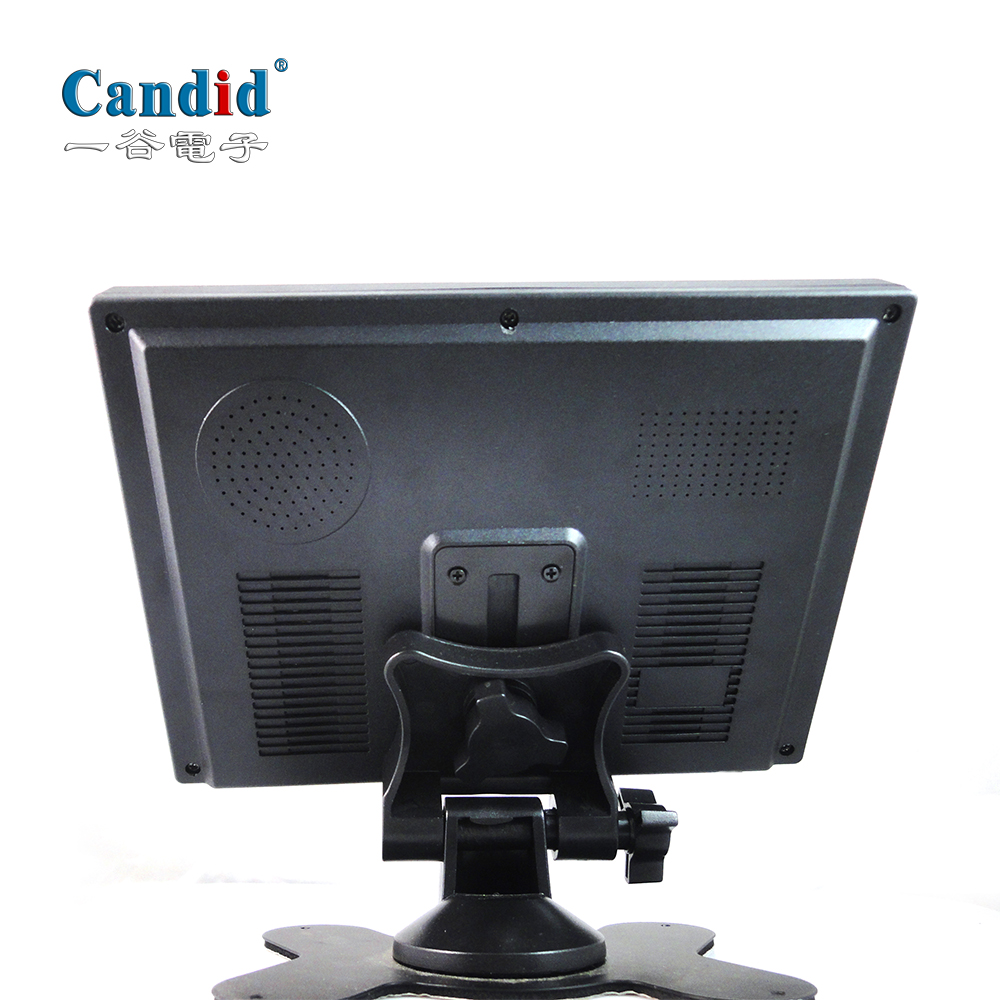

Fahrerüberwachungssystem für Lkw/Busse/Schwerlastfahrzeuge CA-7003
The monitor system is specially installed on bus,truck,coach,trailer for car vehicle reversing, camera 120° view angle , hot sell product ,highly recommended for its clear image and stable quality.
Funktionen
★Good quality picture without radiation.
★High brightness display for truck/bus/van a variety of car models
★ 4 way 1080P、960P、720P、960H、D1(CVBS)ect video input..
★Compatible with CVBS and AHD signal mixed input;
★Compatible with PAL and NTSC TV mode mixed input.
★Circuit protection function.
★Support 12-24V power supply.
★High brightness display for truck/bus/van a variety of car models
★ 4 way 1080P、960P、720P、960H、D1(CVBS)ect video input..
★Compatible with CVBS and AHD signal mixed input;
★Compatible with PAL and NTSC TV mode mixed input.
★Circuit protection function.
★Support 12-24V power supply.
Leistungsbeschreibung
Monitor-Spezifikation | Kamera-Spezifikation | ||
Art | TFT-LCD | Sensor | 225 AHD |
Bildschirmgröße | 7 Zoll (16:9) | TV-Modus | PAL/NTSC |
Auflösungsverhältnis | 1024 RGB (H) x 600 (V) | Bildsensor | 1/2,9 Zoll |
Leuchtdichte | 500cd/m2 | Betriebsspannungsbereich | DC12V (6-16V) |
kontrastverhältnis | 800:1 | Arbeitsstrom | 57mA±10mA |
Sichtbarer Bereich | 154,2144 (H) x 85,92 (V) [mm] | Leistungsaufnahme | 0.684W@ DC12 V |
Betrachtungswinkel | U/D/L/R 60/70/80/80 | Video-Ausgang | 1±0,2 Vss 75Ω |
Videoeingang | 4 Wege 1080P、960P、720P、960H、D1 (CVBS) usw. | Pixsls | 1312*993 |
Kompatibel mit hybridem Eingang von CVBS- und AHD-Signalen | NÜTZLICHE PIXEL | 1280*720 | |
Kompatibel mit PAL- und NTSC-Eingang | Minimale lllomination | 0,1 Lux | |
Auflösungsverhältnis | 1920*1080、1280*720、1024*768、800*600 | Breite Dynamik | 91dB |
Niederfrequenz | Automatische Aufnahme einschalten | Signal-Rausch-Verhältnis | 46 dB |
Speicherkarte | Unterstützt max. 256G-Karte | Auflösungsverhältnis | 720P |
Verbinder | 4-poliger Luftfahrt-Stecker | Objektiv-Winkel | 120 Grad |
Anträge

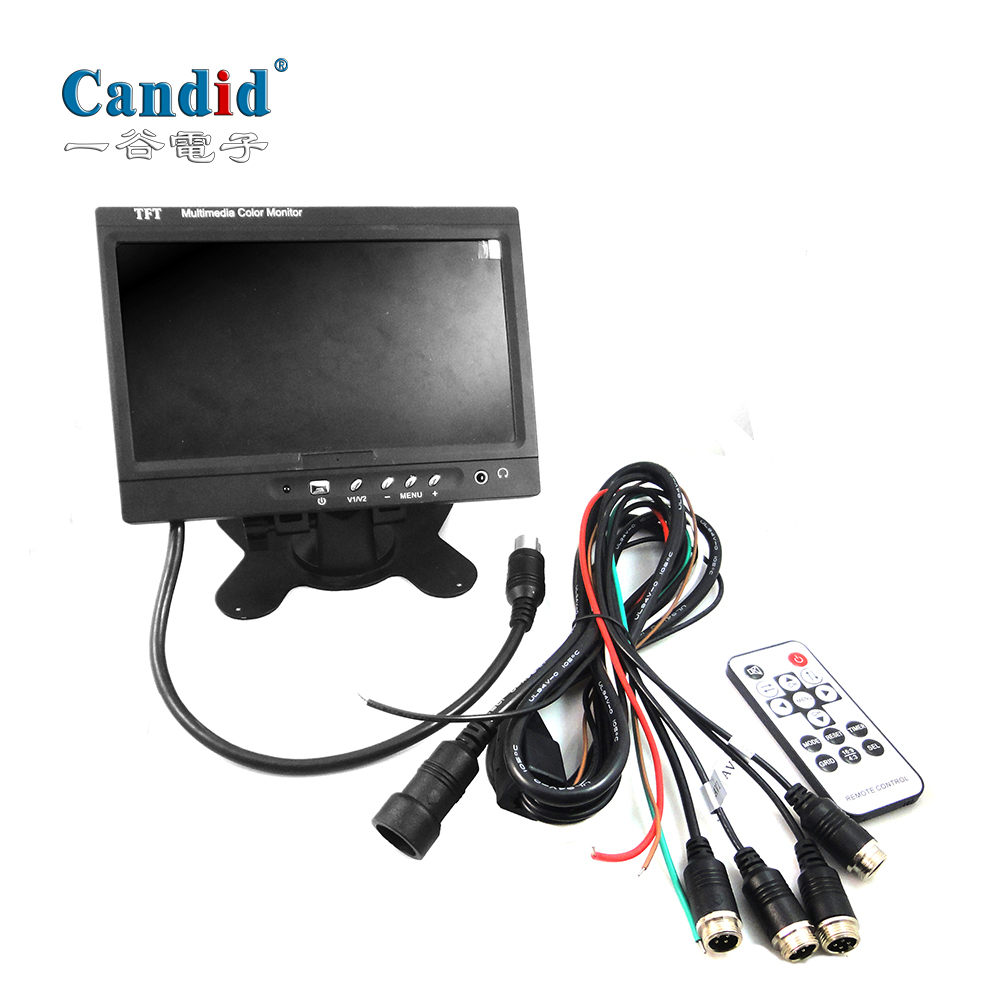

Zubehör
