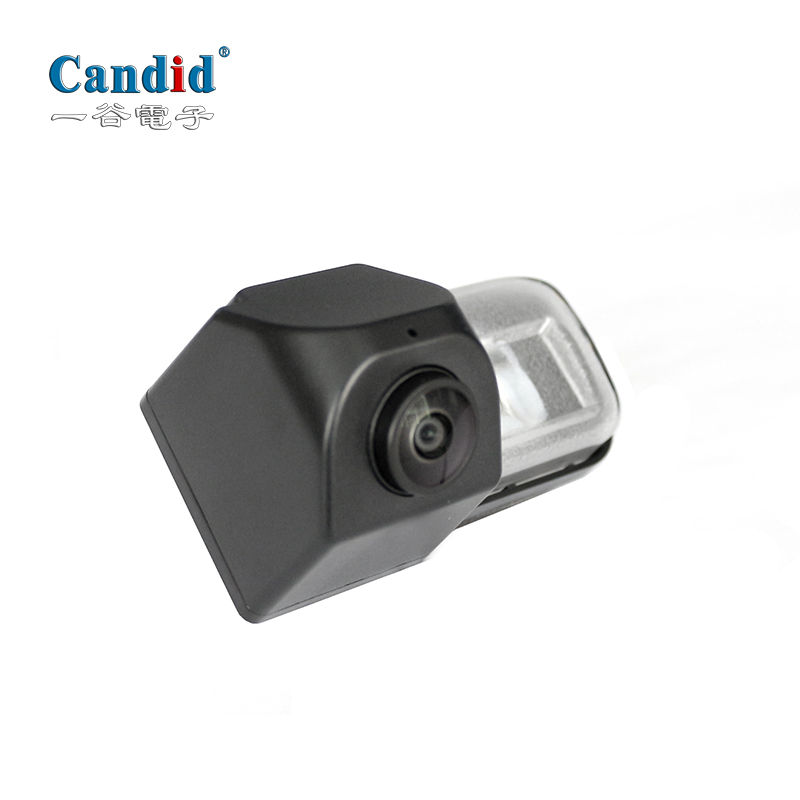

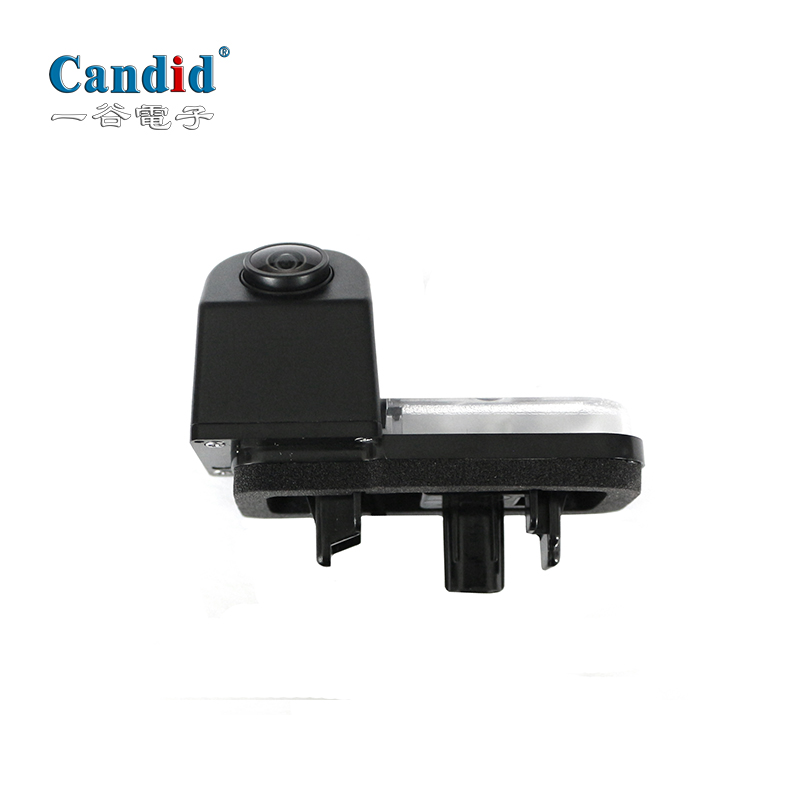

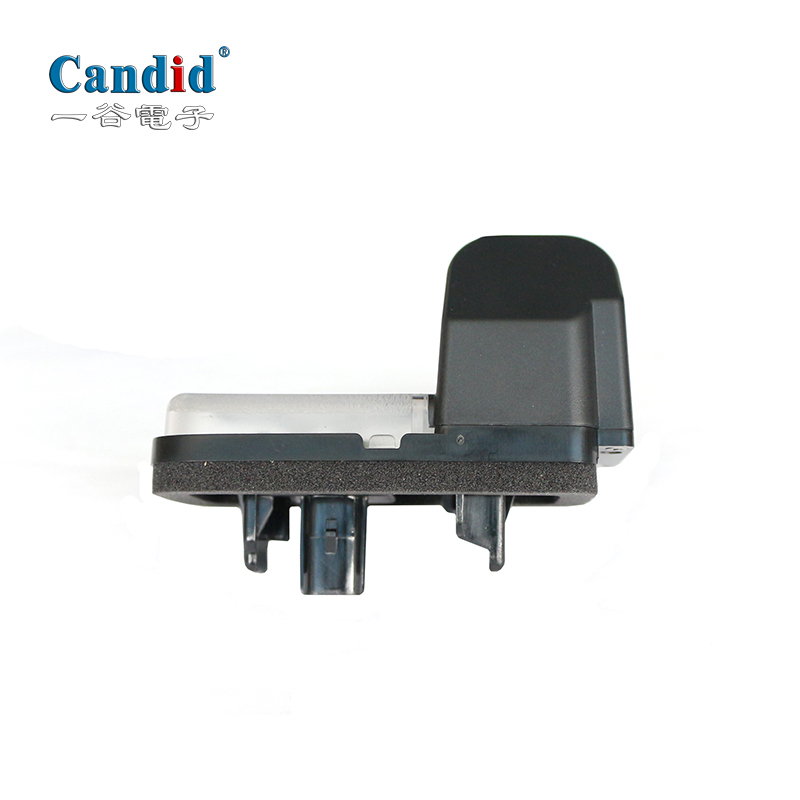

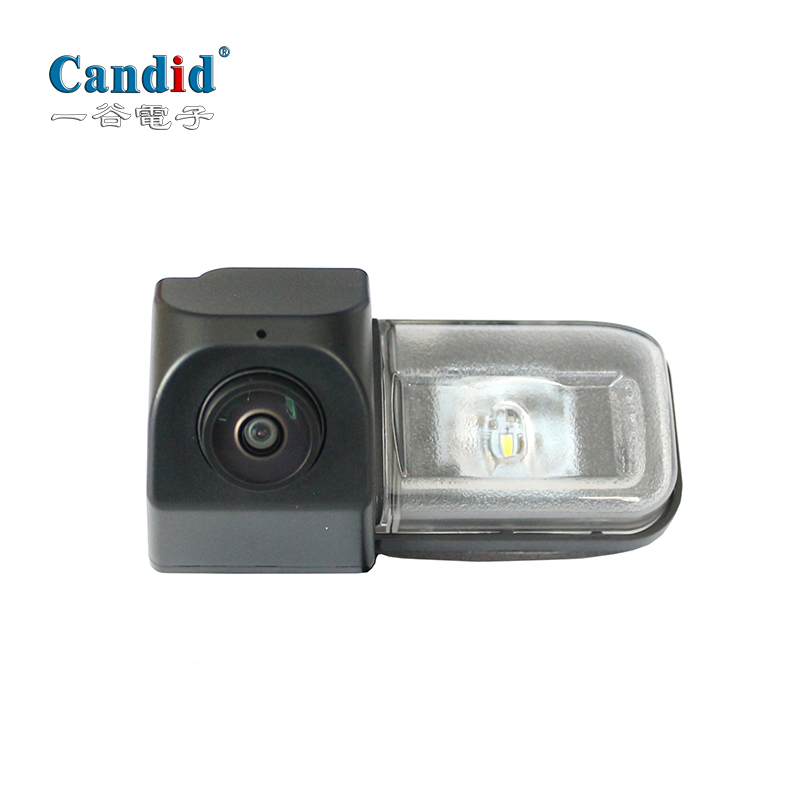

Auto-Kamera LC200
Features:
This rear view camera features a customized high quality reverse camera for car model Land Cruiser LC200, with OE quality standard, and waterproof level of IP69K, this compact camera perfectly match Land Cruiser LC200.
This rear view camera features a customized high quality reverse camera for car model Land Cruiser LC200, with OE quality standard, and waterproof level of IP69K, this compact camera perfectly match Land Cruiser LC200.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Funktionen
Hidden camera: Land Cruiser LC200 customized design reverse camera
Waterproof level: IP68K
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
ASX 340 chipset, OE quality standard chipset
Easy installation, no need to drill any hole, no impact on vehicle's apprearance after installation
Warranty: 18 months
Mirror/non-mirror image optional
NTSC/PAL available
Waterproof level: IP68K
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
ASX 340 chipset, OE quality standard chipset
Easy installation, no need to drill any hole, no impact on vehicle's apprearance after installation
Warranty: 18 months
Mirror/non-mirror image optional
NTSC/PAL available
Leistungsbeschreibung
ov car cameras
| Bildsensor | ASX 340 |
| TV-Modus | PAL/NTSC |
| Bildsensor | (1/4" 4:3 IT-CMOS) |
| Betriebsspannungsbereich | DC12V (3,3-16V) |
| Arbeitsstrom | 34mA±10mA |
| Leistungsaufnahme | 0.408 W @ DC12 V |
| Video-Ausgang | 1±0,2 Vss 75Ω |
| Bildpunkte | 728*560 |
| NÜTZLICHE PIXEL | 720*480 |
| Minimale Beleuchtungsstärke | 1,0 Lux |
| Breite Dynamik | 74,8 dB |
| Signal-Rausch-Verhältnis | 46 dB |
| Auflösungsverhältnis | 340.000 Bilder |
| Gamma-Wert | 0.45 |
| Objektiv-Winkel | Max. 170 |
| Verschlusszeit | 1/60 ~ 1/100.000 (Sekunde) |
| IRIS-Methode | Auto |
| Wasserdichte Stufe | Schutzart IP67 |
| Weißabgleich | Auto |
| AGC | Auto |
| Kompensation der Hintergrundbeleuchtung | Auto |
| Betrieb Luftfeuchtigkeit | 85 RH% |
| Betriebstemperatur | -20°C~ +70°C |
| Lagertemperatur | -40 °C ~ + 85 °C |
